Scanspeak D7608/920010 (Vifa D75MX) 3″ Dome Midrange

Scanspeak D7608/920010 (Vifa D75MX) 3″ Dome Midrange post thumbnail image
This 3″ fabric dome midrange was previously manufactured by Vifa. It was known then as the D75MX. After the demise of Vifa, this driver was in real danger of vanishing into history. Fortunately, Scanspeak had the foresight to rescue it. The model number has been changed to D7608/920010 but it is essentially the same midrange.

Unlike other mid-domes which have closed backs, a rear chamber must be built for the D7608. It should be treated the same as open back cone midrange drivers. The chamber should also be stuffed with glass wool to reduce internal resonances.

For this speaker, I opted for the 8″ Usher 8137A woofer. It’s cone is of Kevlar and Carbon Fiber, resulting in it being lightweight yet rigid. Another reason for using the 8137A is I wanted a smaller box. This 3-way is only 25 liters (internal volume) and is a bass reflex. The Peerless 830869, on the other hand, needed 35 liters for the same F3.

I retained the tweeter, the Peerless XT25SC90, so that it’s easier to compare the D7608 with the Dayton RS52AN 2″ dome midrange.

D7608 Frequency Response

The Blue trace in Fig 1 is the RAW response of Scanspeak’s D7608.

The Red trace is with 800Hz High Pass (24dB/oct) and 4kHz Low Pass (18dB/oct).

No equalization is applied electronically or passively.

SCANSPEAK D7608 VIFA MX75 HIGH PASS AND LOW PASS

(Fig 1) Scanspeak D7608 Frequency Response (No Smoothing, mic at 1 meter, 5 msec gating)

Crossing D7608 with XT25SC90

In Fig 2, the D7608 is crossed with the Peerless XT25SC90 tweeter at 4kHz, both at 18dB/oct with my Synergy amp.

The Blue trace is the summed response.

SCANSPEAK D7608 VIFA MX75 4KHZ CROSSOVER TO PEERLESS XT25SC90 TWEETER

(Fig 2) Response of D7608 and Peerless XT25SC90 (No Smoothing, mic at 1 meter tweeter axis, 5 msec gating)

Crossing Usher 8137A | Scanspeak D7608 | Peerless XT25SC90

This plot (Fig 3), shows how the three drivers are crossed. The Usher 8137A and the D7608 are crossed at 800Hz at 24dB/oct whereas the XT25SC90 is crossed at 4Khz (18dB/oct) to the D7608.

SCANSPEAK D7608 VIFA MX75 RESPONSE WITH PEERLESS XT25SC90 AND USHER 8137A

(Fig 3) Frequency Response of Usher 8137A, Scanspeak D7608 and Peerless XT25SC90

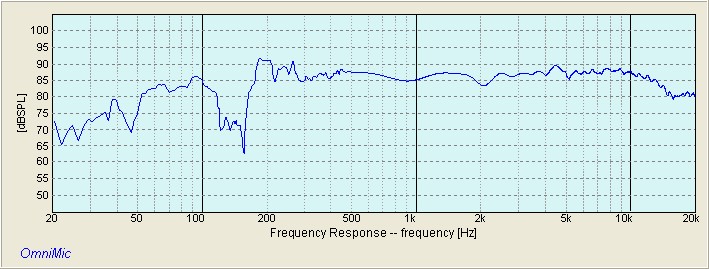

SCANSPEAK D7608 VIFA MX75-SUMMED RESPONSE WITH PEERLESS XT25SC90 AND USHER 8137A

(Fig 4) Summed Response (No Smoothing, mic at 1 meter tweeter axis, 5 msec gating). Disregard measurement below 500Hz.

Summed Response

Fig 4 is the summed response of this 3-way. Disregard measurement below 500Hz. My room is interfering with the response.

Generally, the response is within a 5dB window. However, it is not as flat as the version with the RS52AN. There is a gentle valley at 1kHz, followed by a dimple at 2Khz.

Sound Quality

The Scanspeak D7608 is absolutely bewitching. It has that distinctive “zing” that was the hallmark of the Vifa premium line silk dome tweeters. Instruments like acoustic guitars, cymbals, even pianos have that sparkle in their music.
