AmpsLab-Spk HIFI DRIVERS Peerless 830874 PPB Cone HDS 6-1/2″ Woofer

Peerless 830874 PPB Cone HDS 6-1/2″ Woofer

Peerless 830874 PPB Cone HDS 6-1/2″ Woofer post thumbnail image

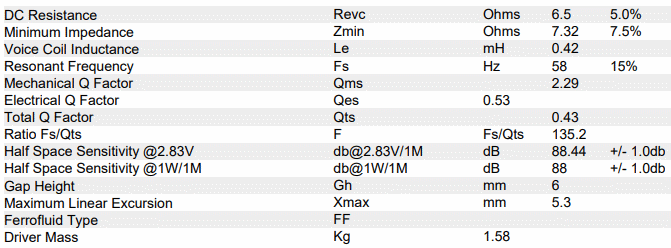

Peerless Thiele & Small Parameters

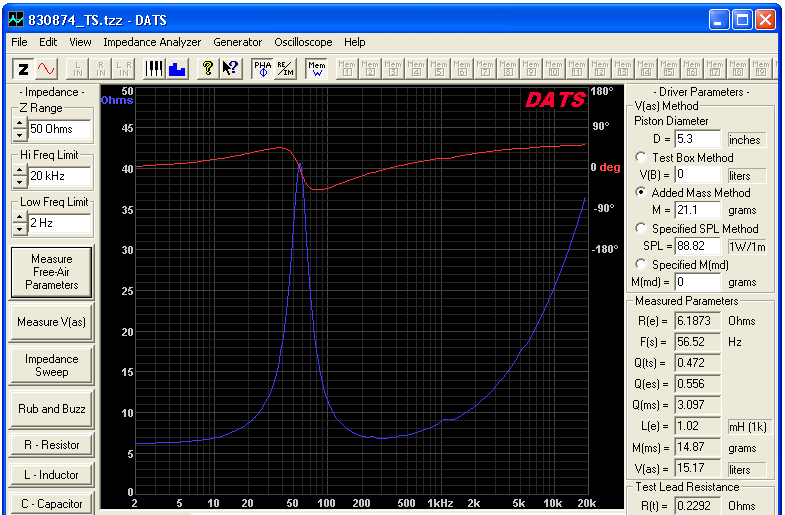

Measured Thiele & Small Parameters

PEERLESS 830874 THIELE SMALL

Ported Box=27 liters. F3=43HzPEERLESS 830874 PORTED 27L

Ported Box=18 liters. F3=50Hz

Ported Box=15 liters. F3=55HzPEERLESS 830874 PORTED 15L

Bandpass Box=27 liters. F3=45Hz-125HzPEERLESS 830874 BANDPASS 27L

Peerless 830874 RAW Frequency ResponsePEERLESS 830874 FREQUENCY RESPONSE

Baffle Width=8.75″ •  Ported Box=15 liters
Mic at 36ins, woofer axis. Impulse Window=5msec. No Smoothing. Nearfield below 500Hz.

Peerless 830874 Harmonic DistortionPEERLESS 830874 HARMONIC DISTORTION

Updated on Feb 13, 2021
