HiVi L6-4R Woven Kevlar Cone 6″ Woofer

HIVI L6-4R KEVLAR MIDWOOFER

August 29, 2017Drivers Thiele & Small, HIFI DRIVERS, , ,


HiVi L6-4R RAW Frequency ResponseHIVI L6-4R RAW FREQUENCY RESPONSEBaffle Width=8.5″. Ported Box=13 liters.
Mic at 36ins, woofer axis. Impulse Window=5msec. No Smoothing.

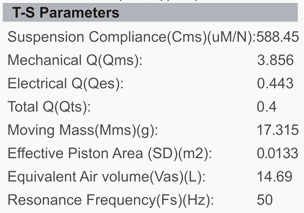

Thiele & Small Parameters

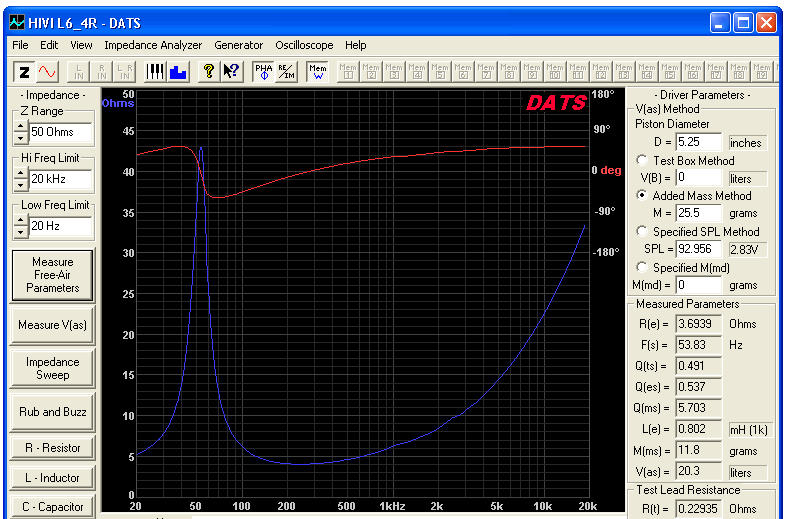

Thiele & Small Parameters (before Break-in)
HIVI L6-4R THIELE SMALL

Ported Box=15 liters • Fb=50Hz (Manufacturer’s T/S)

Ported Box=15 liters • Fb=50Hz (DATS T/S)

Ported Box=18 liters • Fb=50Hz (Manufacturer’s T/S)

Ported Box=18 liters • Fb=50Hz (DATS T/S)

Ported Box=24 liters • Fb=45Hz (Manufacturer’s T/S)
Ported Box=24 liters • Fb=50Hz (DATS T/S)

Updated on Dec 13, 2023
