Goldwood GT-520 1″ Soft Dome Horn Tweeter

Goldwood GT-520 1″ Soft Dome Horn Tweeter post thumbnail image

Goldwood GT-520 RAW Frequency ResponseGOLDWOOD GT-520 RAW FREQUENCY RESPONSEFig 1 – Mic at 36ins, tweeter axis. Impulse Window = 5ms. No Smoothing.

Goldwood GT-520 • 3kHz HPF • 24dB/oct • Linkwitz Riley
GOLDWOOD GT-520 RESPONSE AT 3KHZ HPFFig 2 – Mic at 36ins, tweeter axis. Impulse Window = 5ms. No Smoothing.

Goldwood GT-520 Toneburst Energy StorageGOLDWOOD GT-520 TES 3KHZ HPFFig 3 – 3kHz HPF • 24dB/oct • Linkwitz Riley

Goldwood GT-520 SpectrogramGOLDWOOD GT-520 SPECTROGRAM 3KHZ HPFFig 4 – 3kHz HPF • 24dB/oct • Linkwitz Riley

Goldwood GT-520 Harmonic Distortion
GOLDWOOD GT-520 HARMONIC DISTORTION 3KHZ HPFFig 5 – Red plot = 2nd harmonic • Violet plot = 3rd harmonic
3kHz HPF • 24dB/oct • Linkwitz Riley

Goldwood GT-520 Impedance

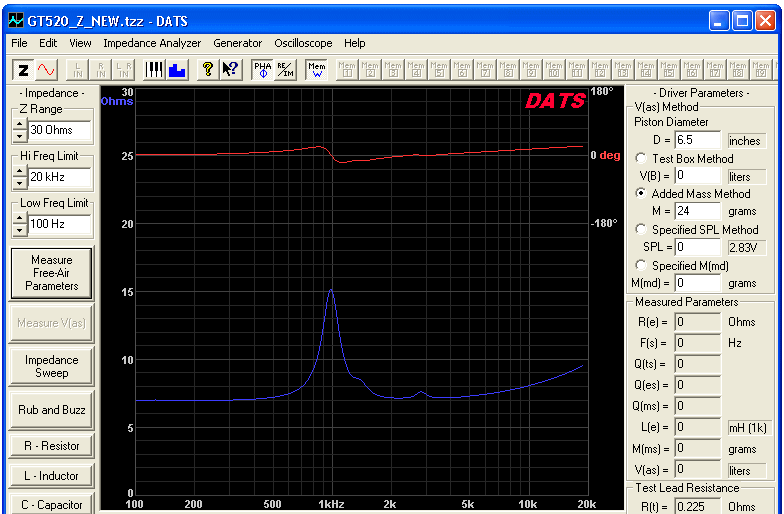

GOLDWOOD GT-520 IMPEDANCEFig 6 – GT-520 Fs=1kHz
