AmpsLab-Spk PRO DRIVERS Pyle PDS442 Midrange Compression Driver Horns Compatibility

Pyle PDS442 Midrange Compression Driver Horns Compatibility

Pyle PDS442 Midrange Compression Driver Horns Compatibility post thumbnail image
Pyle PDS442 Specifications: • 1″ exit Titanium Diaphragm • Mounting type: 1-3/8″ 18 TPI • Frequency Response: 1kHz-20kHz • Sensitivity: 105dB @ 1W/1M • Impedance: 8Ω • Magnet Structure: 30oz • Weight: 4.55 lbs.
Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed.

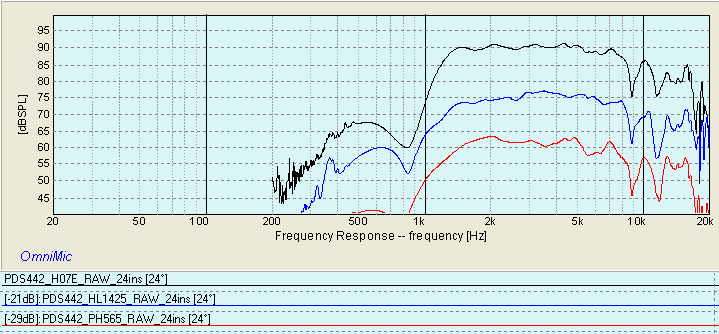

Pyle PDS442 with Dayton H07E • Selenium HL14-25 • Pyle PH565

PYLE PDS442 H07E HL1425 PH565

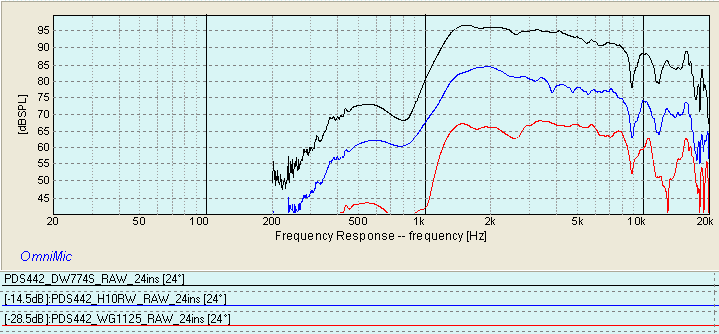

Pyle PDS442 with Denovo DW774S • Dayton H10RW • PRV WG11-25PYLE PDS442 DW774S H10RW WG1125

Pyle PDS442 with PH612PYLE PDS442 PH612
