Pyle PDS182 Compression Driver Horns Compatibility

PYLE PDS182
Pyle PDS182 Specifications: • 1″ exit Titanium Diaphragm • Mounting type: 1-3/8″ 18 TPI • Frequency Response: 1.5kHz-20kHz • Sensitivity: 103dB @ 1W/1M • Impedance: 8Ω • Neodymium Magnet Structure: 13.5oz • Weight: 2.36 lbs.
Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed.

Pyle PDS182 with Denovo DW774S • Dayton H07E • PRV WG11-25

PYLE PDS182 DW774S H07E WG1125

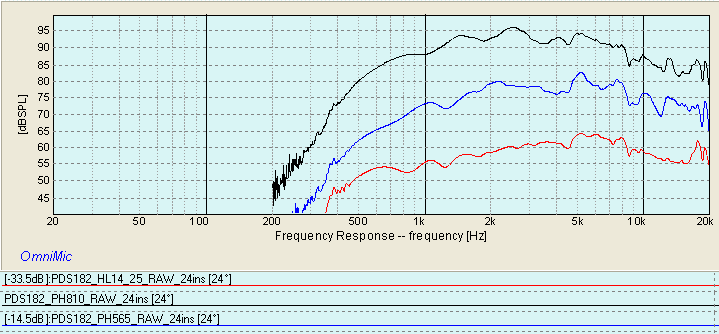

Pyle PDS182 with Pyle PH810 • PH565 • Selenium HL14-25PYLE PDS PH810 PH565 HL1425

Pyle PDS182 with Dayton H10RW • Pyle PH612PYLE PDS182 H10RW PH612
