Pyle PDS221 Compression Driver Horns Compatibility

Pyle PDS221 Compression Driver Horns Compatibility post thumbnail image
Pyle PDS221 Specifications: • 1″ exit Titanium Diaphragm • Mounting type: 1-3/8″ 18 TPI • Frequency Response: 800Hz-20kHz • Sensitivity: 102dB @ 1W/1M • Impedance: 8Ω • Magnet Structure: 20oz • Weight: 1.75 lbs.
Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed.

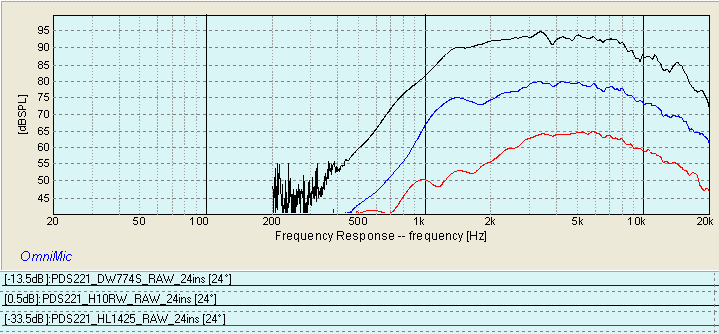

Pyle PDS221 with Dayton H10RW • Denovo DW774S • Selenium HL14-25

pyle pds221 h10rw dw774s hl1425

Pyle PDS221 with PRV WG11-25 • Dayton H07E • Selenium HC23-25PYLE PDS221 WG1125 H07E HC2325

Pyle PDS221 with Pyle PH810 • PH612 • PH565PYLE PDS221 PH810 PH612 PH565
