| Pyle PDS382 Specifications: • 1″ exit Titanium Diaphragm • Mounting type: 1-3/8″ 18 TPI • Frequency Response: 1.0kHz-20kHz • Sensitivity: 104dB @ 1W/1M • Impedance: 8Ω • Neodymium Magnet Structure: 21oz • Weight: 3.46 lbs. Evaluation Setup: Mic at 24 ins, horn axis • Impulse Window=5ms • No Smoothing • Sweep Signal with Bass Removed. |

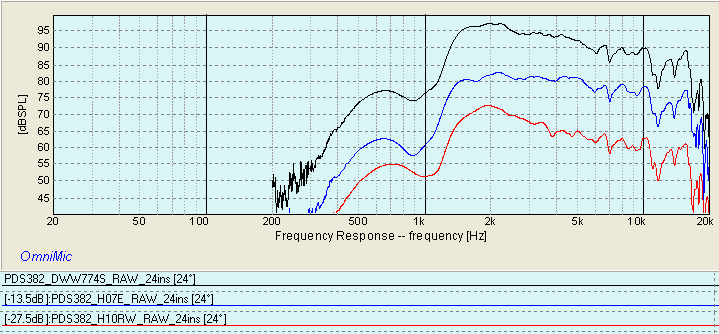

Pyle PDS382 with Denovo DW774S • Dayton H07E • H10RW

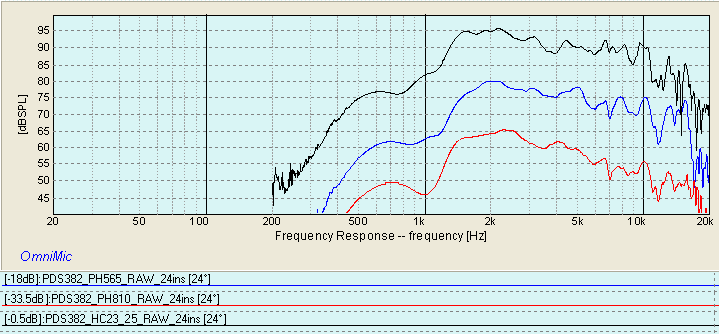

Pyle PDS382 with Selenium HC23-25 • Pyle PH565 • PH810
|
April 18, 2018PRO DRIVERS
