Peerless 830870 4″ HDS Midrange Thiele/Small

Peerless 830870 RAW Frequency ResponseBaffle Width=8.5″ • Sealed Box=6 liters
Mic at 24ins, woofer axis. Impulse Window=5msec. No Smoothing. Nearfield below 500Hz.

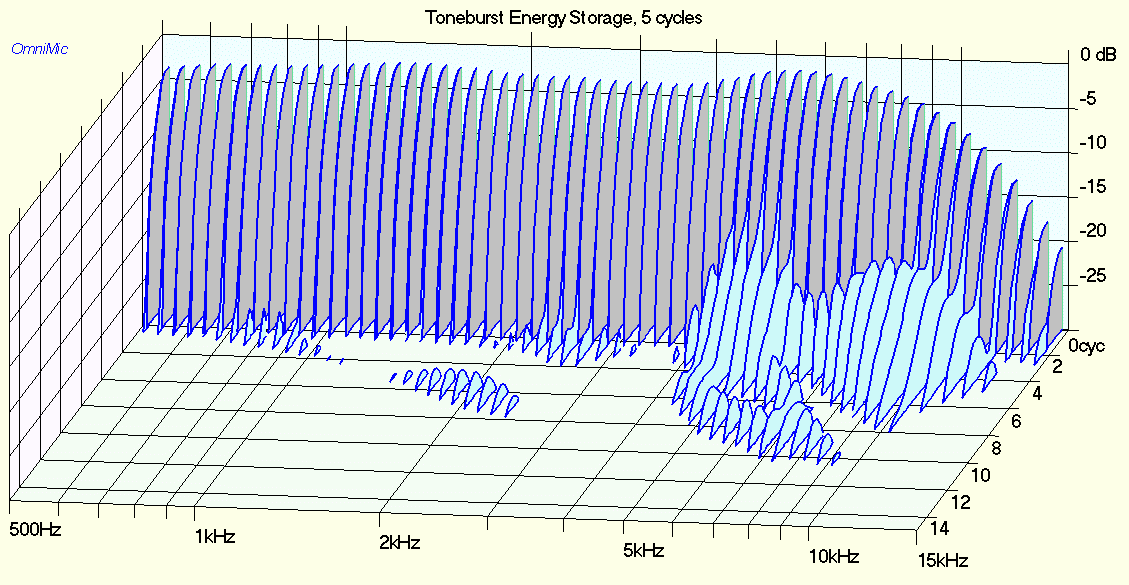

Peerless 830870 RAW Toneburst Energy Storage (TES)

Peerless 830870 RAW Spectrogram

Peerless 830870 RAW Harmonic Distortion

Red plot=2nd Harmonic • Violet plot=3rd Harmonic

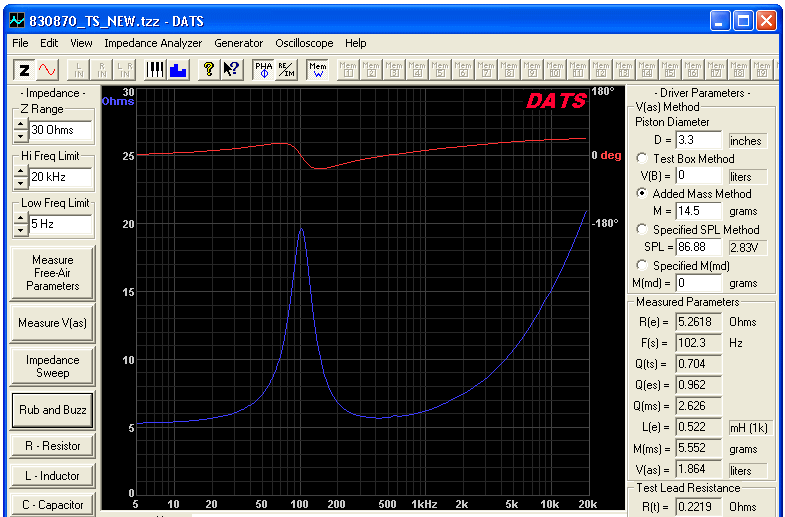

Peerless 830870 Thiele & Small Parameters

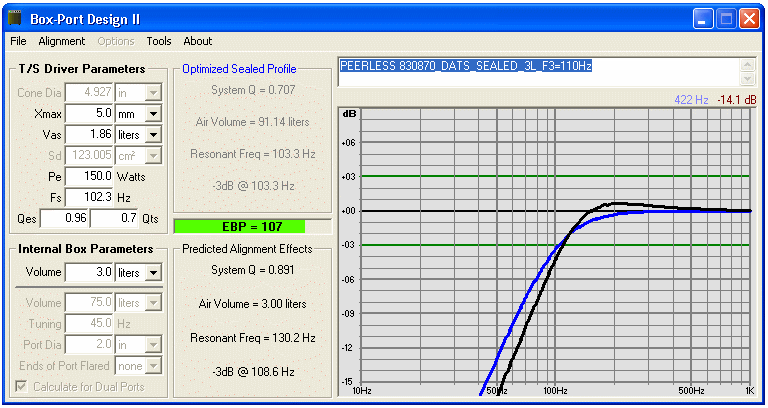

Sealed Box 3 liters. F3=110Hz, Q=0.89

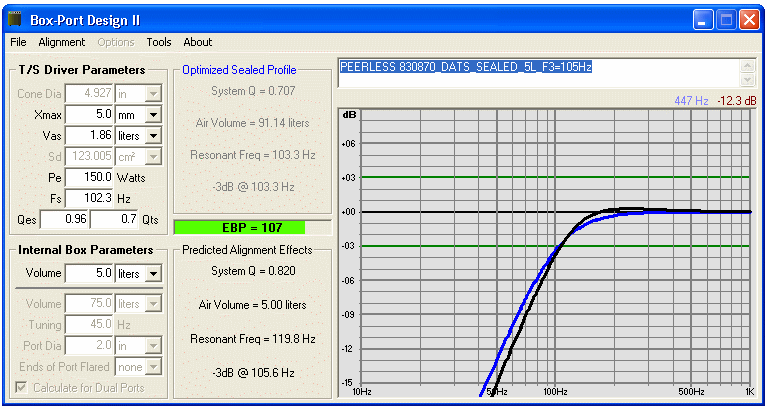

Sealed Box 5 liters. F3=105Hz, Q=0.82

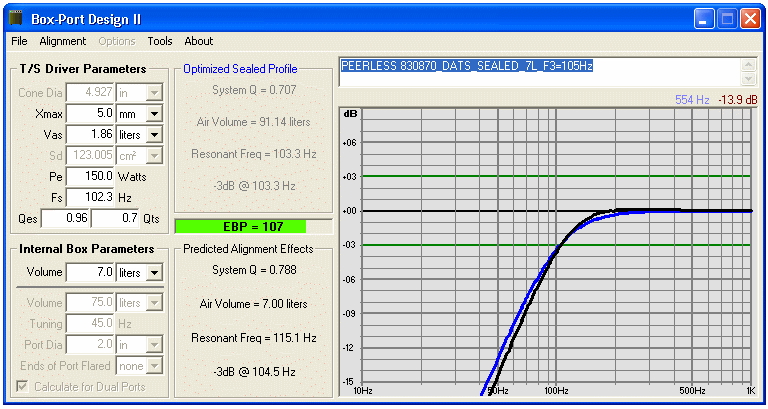

Sealed Box 7 liters. F3=105Hz, Q=0.79

Updated on July 18, 2018
