Dayton DSA135-8 Aluminum Cone 5″ MidWoofer Thiele/Small

Dayton DSA135-8 Published Frequency Response

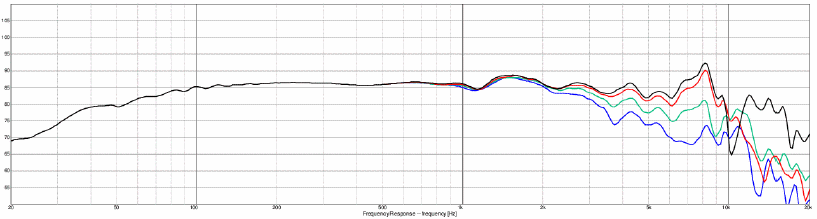

Dayton DSA135-8 RAW Frequency Response

Baffle Width=8.25″ •  Ported Box=7 liters
Mic at 24ins, woofer axis. Impulse Window=5msec. No Smoothing. Nearfield below 500Hz.

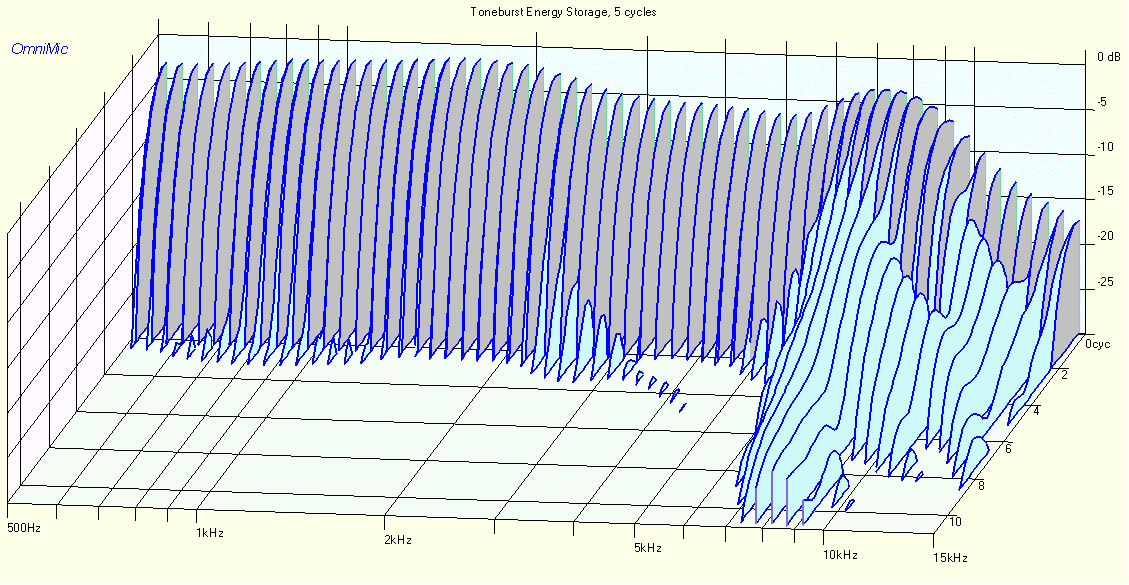

Dayton DSA135-8 RAW Toneburst Energy Storage (TES)

Dayton DSA135-8 RAW Harmonic Distortion

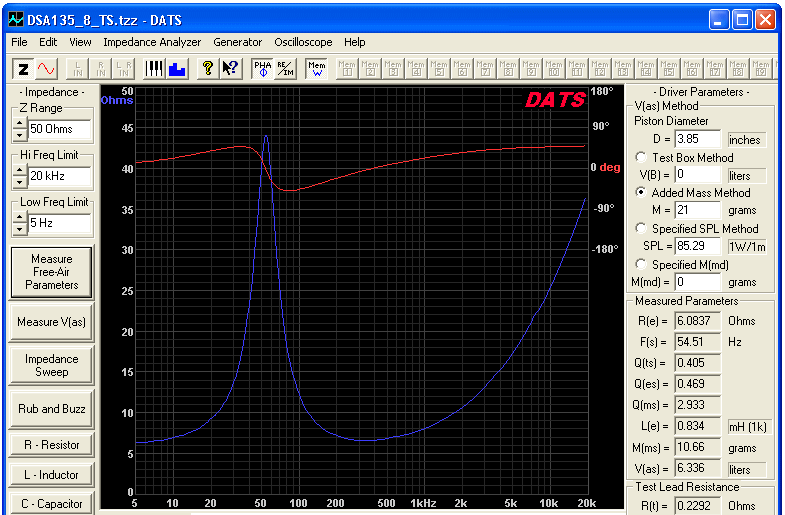

Dayton DSA135-8 Thiele & Small Parameters

Thiele & Small Parameters (before Break-in)

Ported Box=8 liters • Fb=55Hz (Manufacturer’s T/S)

Ported Box=8 liters • Fb=55Hz (DATS T/S)
Hummingbird-TA
Ported Box=10 liters • Fb=52Hz (Manufacturer’s T/S)

Ported Box=10 liters • Fb=52Hz (DATS T/S)
Ported Box=13 liters • Fb=50Hz (Manufacturer’s T/S)

Sealed Box=3 liters • F3=97Hz • Q=0.73 (Manufacturer’s T/S)
