Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

Fountek NeoCD3.5H

NeoCD3.5H Frequency Response (Baffle Width = 6.75″)

Fig 1 – Black plot = RAW. Red plot = 2.6kHz (24dB/oct).
Mic 1 meter, on axis. Impulse Window = 5msec. No Smoothing applied.

RAW NeoCD3.5H Cumulative Spectral Decay (Baffle Width = 6.75″)

Fig 2 – Rise Time = 0.1ms, Window = 1.3ms ( 769Hz ), Time Range = 1.0ms.

RAW NeoCD3.5H Toneburst Energy Storage (Baffle Width = 6.75″)

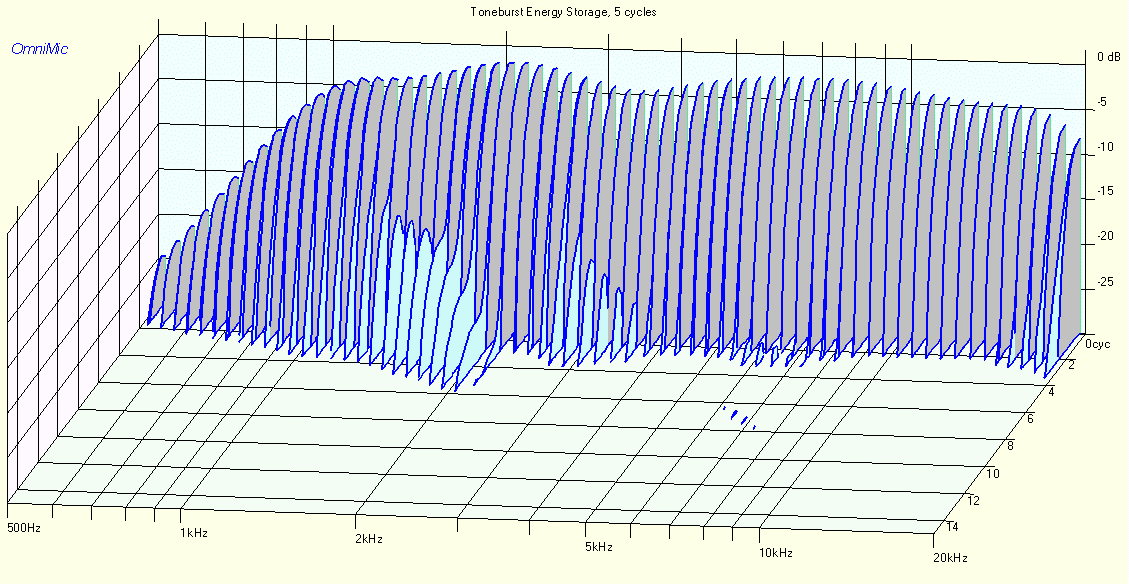

Fig 3 – NeoCD3.5H Toneburst Energy Storage.

RAW NeoCD3.5H Spectrogram (Baffle Width = 6.75″)

Fig 4 – NeoCD3.5H Spectrogram

RAW NeoCD3.5H Step Response

Fig 5 – Step Response (No Crossover)

NeoCD3.5H Impedance

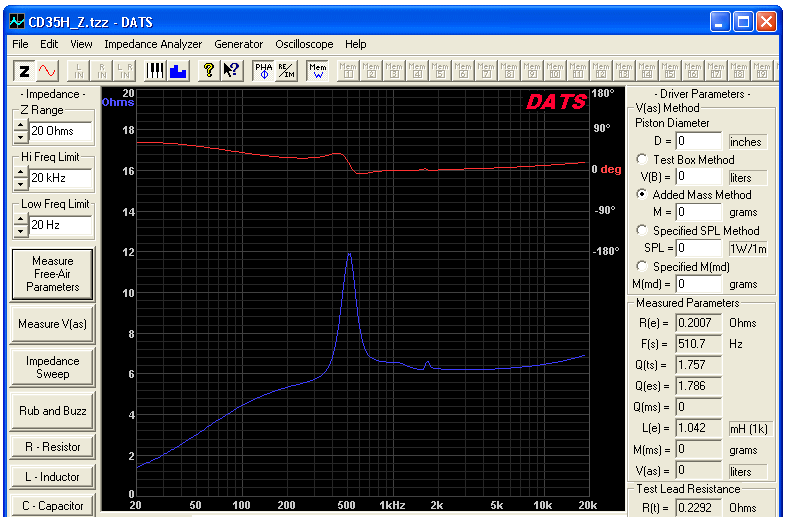

Fig 6 – NeoCD3.5H Impedance Sweep
