Markaudio CHP-70-P Gen2 Full Range Measurements

Markaudio CHP-70-P Gen2 Full Range Measurements post thumbnail image

Manufacturer’s Frequency Response

Measured Frequency Response

Baffle Width = 6-1/2″ |  Sealed Box 1.7 liters  |  500Hz and below in Nearfield  |  No Smoothing

Step Response

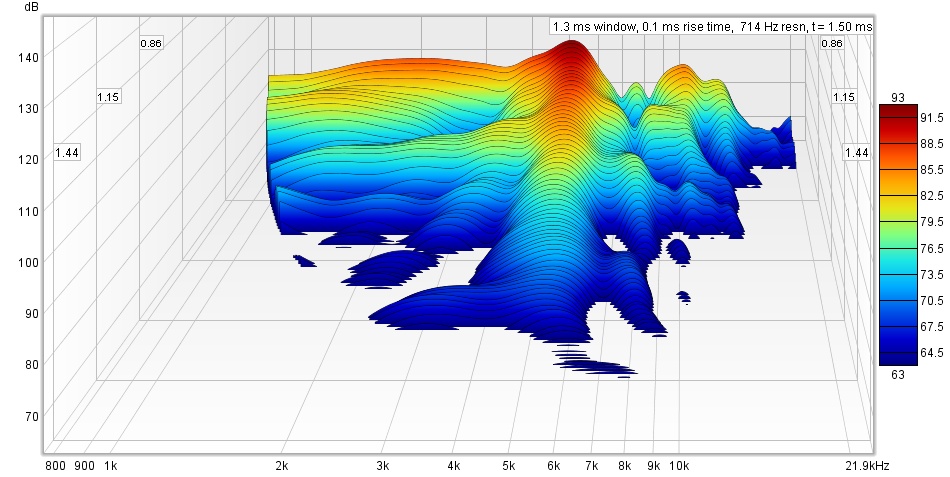

Cumulative Spectral Decay

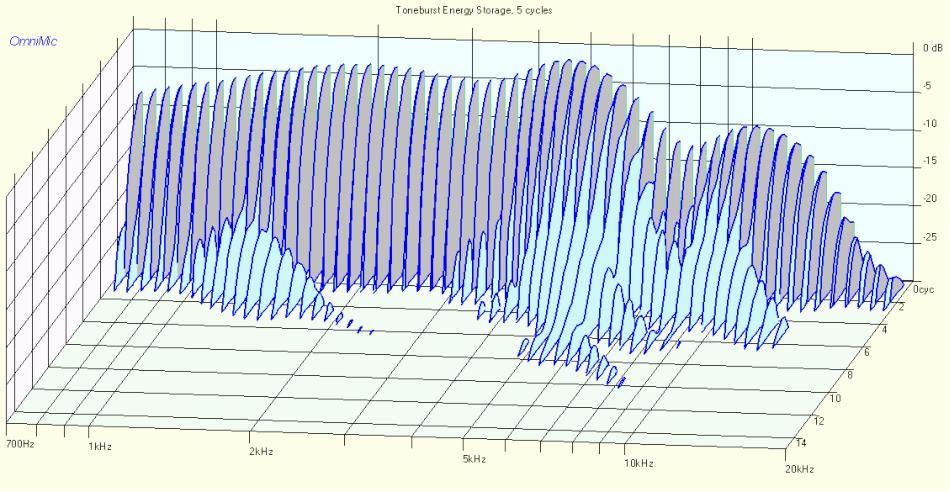

Toneburst Energy Storage

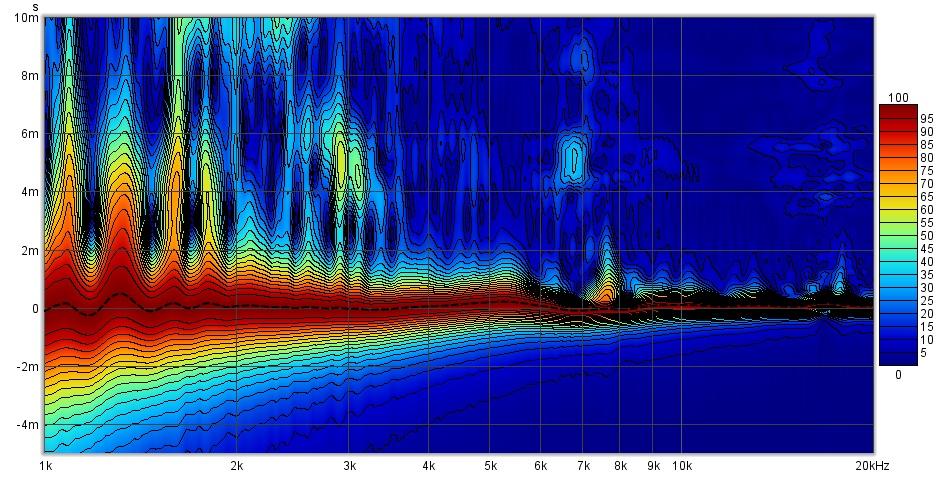

Spectrogram

Harmonic Distortion

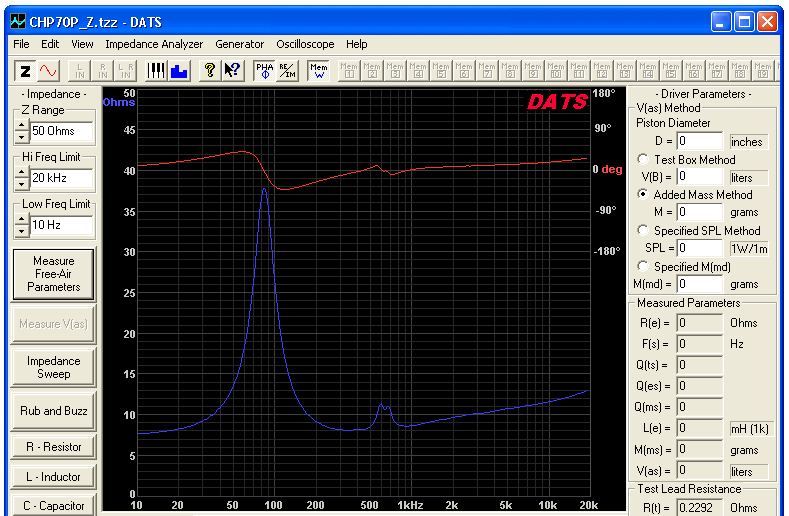

Impedance



Note:
Enclosure used is 1.7 liters Sealed Box stuffed with Polyfill.
Unless otherwise stated, all measurements were made with the mic at 36 ins, on axis. Impulse Window=5ms. No smoothing applied.
