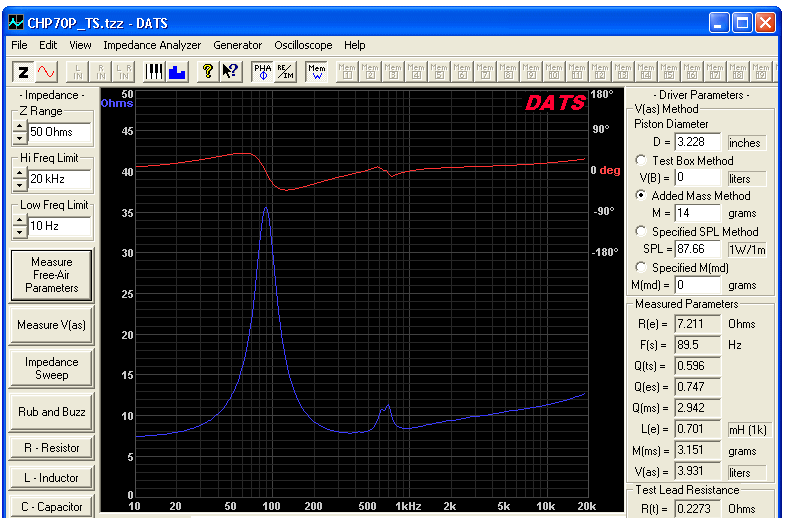

Markaudio CHP70-P GEN2 Thiele & Small Ported Box=7 liters. F3=71Hz
Ported Box=7 liters. F3=65Hz
Ported Box=13 liters. F3=55Hz
Sealed Box=7 liters. F3=105Hz
Sealed Box=3 liters. F3=110Hz
|
Markaudio CHP70-P GEN2
