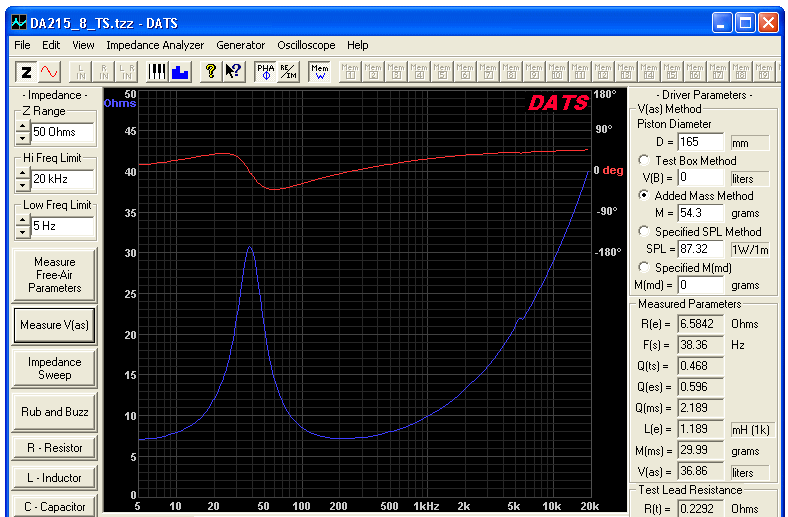

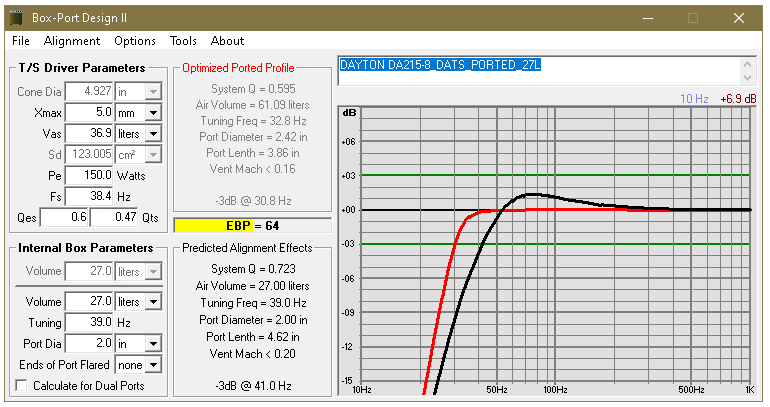

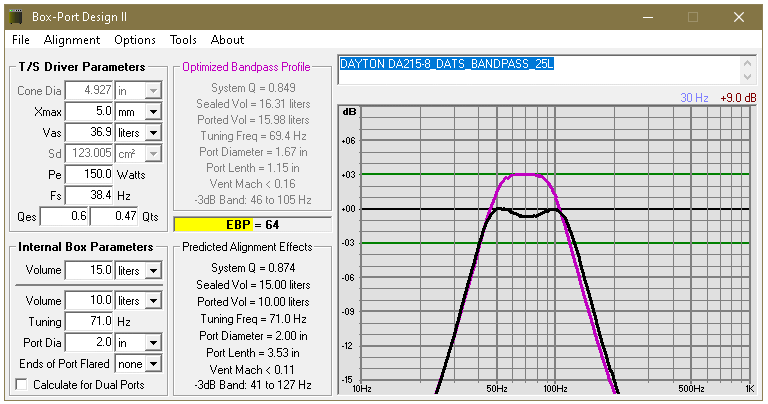

michael chuaApril 30, 2020Drivers Thiele & Small, HIFI DRIVERSAluminum Cone, DA215, Dayton Thiele & Small Parameters Dayton DA215-8 RAW Frequency Response 24 Liters Bass Reflex • Port Tuning = 2″ DIA, L=6.5″ • Baffle Width=13-1/2″ Thiele & Small Parameters (before Break-in) Ported Box=27 liters • Fb=39Hz (DATS T/S) BandPass Box=25 liters • Fb=71Hz (DATS T/S)
24 Liters Bass Reflex • Port Tuning = 2″ DIA, L=6.5″ • Baffle Width=13-1/2″
