| Specifications: • Nominal dispersion: 80°H x 70°V • Minimum frequency: 1,400 Hz • Throat diameter: 1″ • Dimensions: 4.72″H x 7.09″W x 3.38″D • Mounting type: Standard 2 bolt • Construction: Aluminum |
|
On axis Frequency Response
Eminence S2B-A adapter was used for the following compression drivers
Note: All plots are staggered for easier reference. Mic at 24 inches, on axis. Impulse Window=5msec. No smoothing applied. |
June 10, 2020PRO DRIVERS
Black=Dayton D250P | Blue=

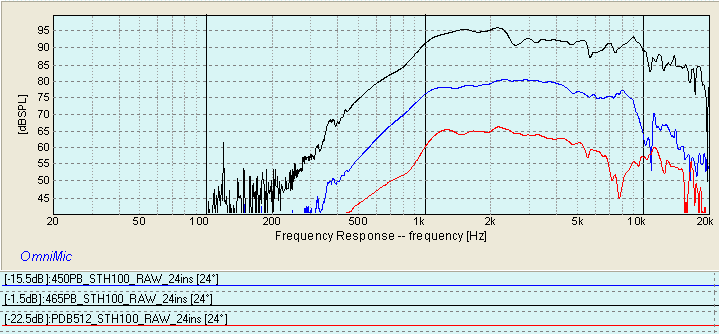

Black=Radian 465PB | Blue=Radian 450PB | Red=Pyle PDB512

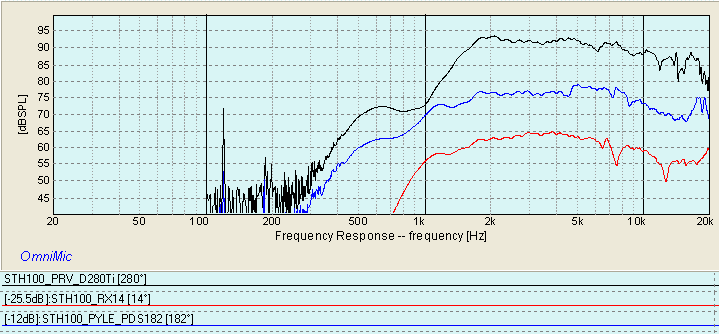

Black=PRV D280Ti | Blue=Pyle PDS182 | Red=Peavey RX14
Black=Pyle PDS382 | Blue=
