AmpsLab-Spk PRO DRIVERS Denovo Audio SEOS-8 Waveguide (2 Bolt)

Denovo Audio SEOS-8 Waveguide (2 Bolt)

Denovo Audio SEOS-8 Waveguide (2 Bolt) post thumbnail image

On axis Frequency Response

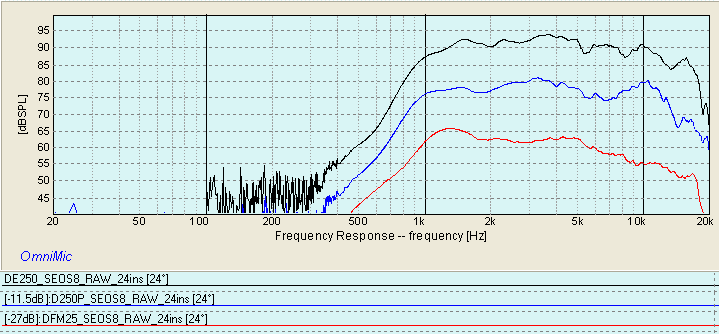

Black=B&C DE250  |  Blue=Dayton D250P  |  Red=Peerless DFM2535R00-08

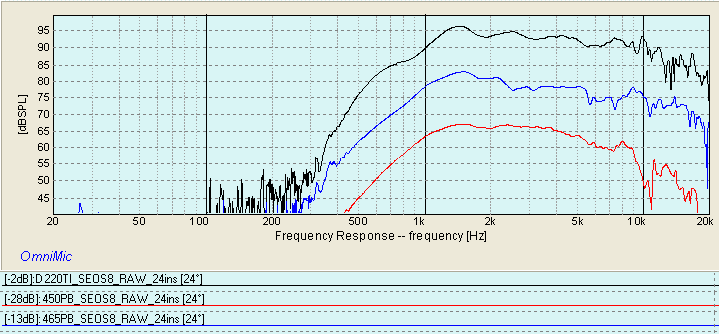

Black=Selenium D220Ti  |  Blue=Radian 465PB  |  Red=Radian 450PB

Black=Pyle PDB512

Eminence S2B-A adapter was used for the following compression drivers

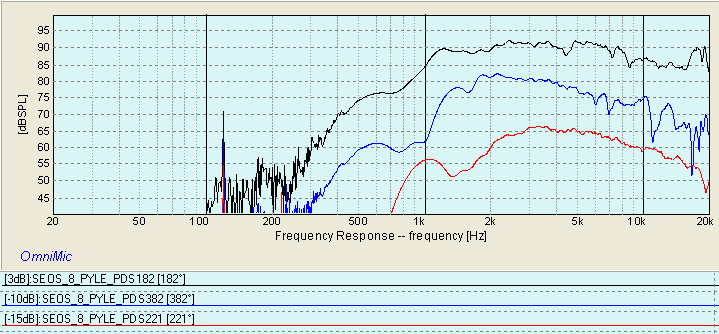

Black=Pyle PDS182  |  Blue=Pyle PDS382 |  Red=Pyle PDS221

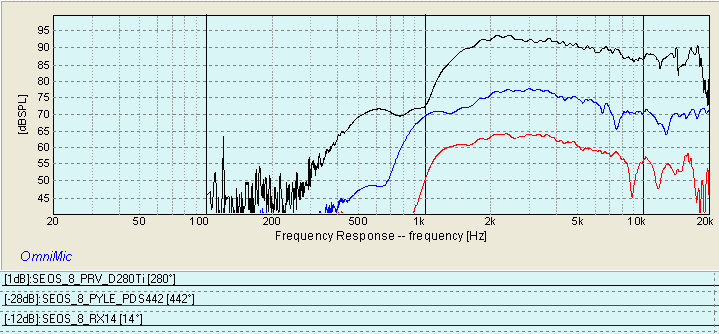

Black=PRV D280Ti  |  Blue=Peavey RX14  |  Red=Pyle PDS442

Note: All plots are staggered for easier reference. Mic at 24 inches, on axis. Impulse Window=5msec. No smoothing applied.
