Selenium HL14-25 Exponential Horn (45×45 – 1-3/8″ x 18 TPI)

Specifications: • Nominal dispersion: 45°H x 45°V • Minimum frequency: 600 Hz • Throat diameter: 1″ • Dimensions: 6.1″H x 6.1″W x 10.2″D • Mounting type: Standard Screw 1-3/8″ – 18TPI • Construction: ABS

On axis Frequency Response

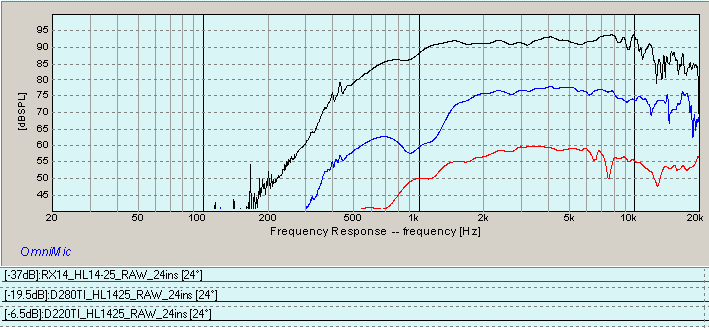

Black=Selenium D220Ti  |  Blue=PRV D280Ti  |  Red=Peavey RX14

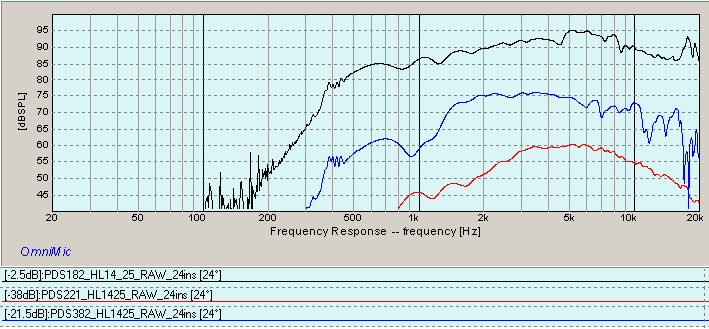

Black=Pyle PDS182  |  Blue=Pyle PDS382  |  Red=Pyle PDS221

Black=Pyle PDS442

Selenium ADM25-25 adapter was used for the following compression drivers

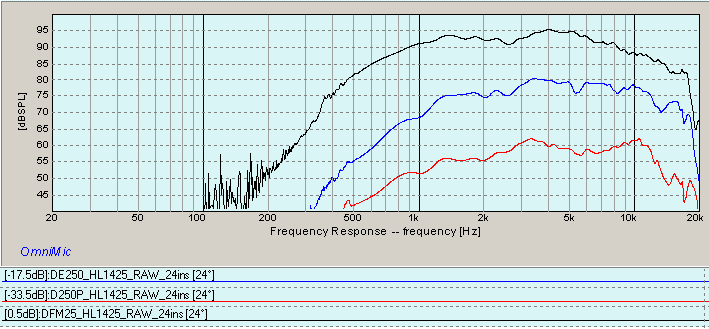

Black=Peerless DFM2535R00-08  |  Blue=B&C DE250 |  Red=Dayton D250P

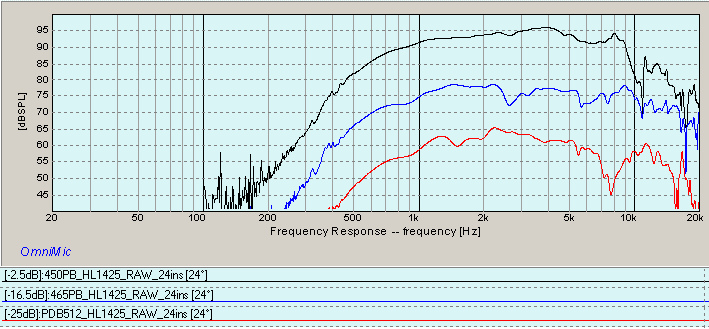

Black=Radian 450PB  |  Blue=Radian 465PB  |  Red=Pyle PDB512

Note: All plots are staggered for easier reference. Mic at 24 inches, on axis. Impulse Window=5msec. No smoothing applied.
