Peavey Constant Directivity CDM Piezo Horn

CDM Horn used in Peavey 112HS, 112HC, 112HC-II, 1210HC, 1210HC-II, 115HS, 115HC, 115HC-ii, MDJ 1150, MDJ 2150, 112DL, 115DL, 1210DL, DJS 1500

Peavey CDM Horn (Dual Motorola 435 Piezos)Fig 1 – RAW Frequency Response  •  Free Standing  •  mic at 24 ins On-Axis  •  No Smoothing

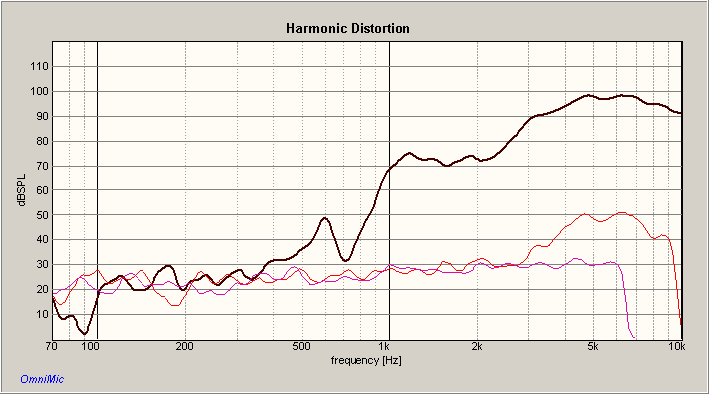

Fig 2 – RED plot=2nd harmonics  •  VIOLET plot=3rd harmonics

Fig 3 – Step Response

Fig 4 – Waterfall

Fig 5 – Spectrogram
