SB Acoustics SB13PFC25-08 Paper Cone 5″ Woofer

SB Acoustics SB13PFC25-08 RAW Frequency ResponseBaffle Width=8-3/4″ • Bass Reflex Box=8 liters

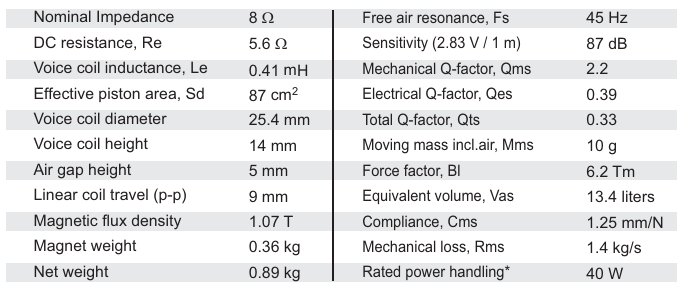

Thiele & Small Parameters

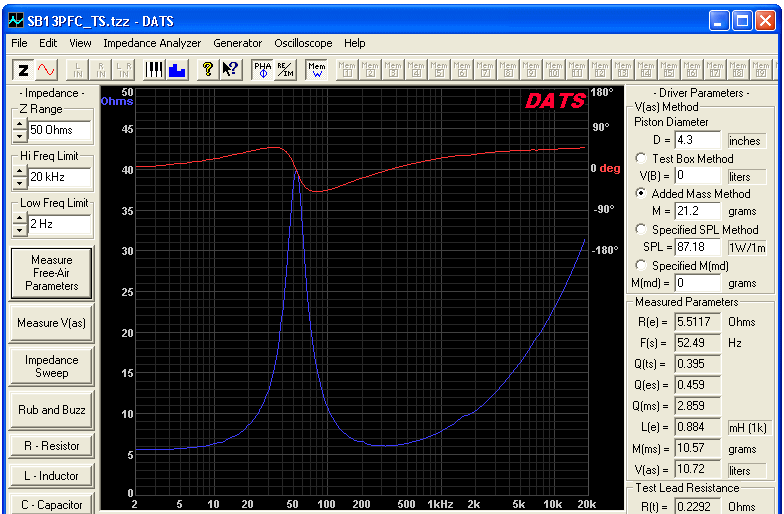

Thiele & Small Parameters (before Break-in)

Ported Box=13 liters • Fb=50Hz (Manufacturer’s T/S)

Ported Box=13 liters • Fb=50Hz (DATS T/S)

Sealed Box=5 liters • F3=93Hz • Q=0.71 (DATS T/S)

Unless otherwise stated, all measurements were made in Full Space (4 pi) with the mic at 36 ins, woofer axis. Impulse Window=5ms. No smoothing applied.

Updated on Oct 30, 2023
