HiVi F8 Kevlar/Paper Cone 8″ Woofer Review
September 20, 2024Drivers Evaluation
|
Unless otherwise stated, all measurements were made in Full Space (4pi). Mic at 36 ins, tweeter axis. Impulse Window=5ms. No smoothing applied. |
Fig 1 – HiVi F8 RAW Frequency Response • 28 liters Bass Reflex • Baffle Width = 12″
Fig 2 – HiVi F8 Toneburst Energy Storage

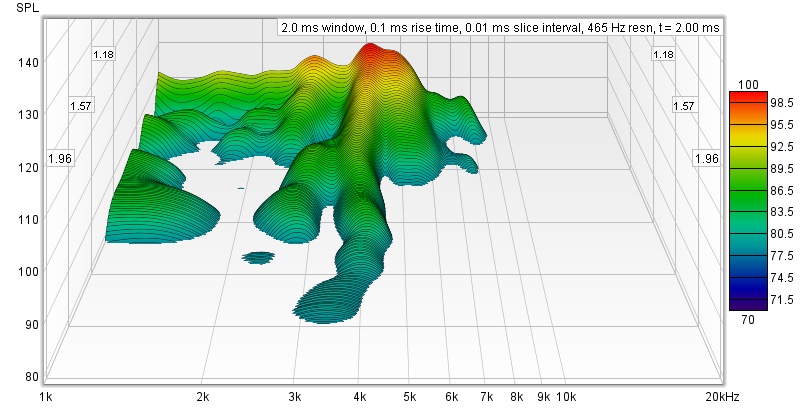

Fig 3 – HiVi F8 Waterfall

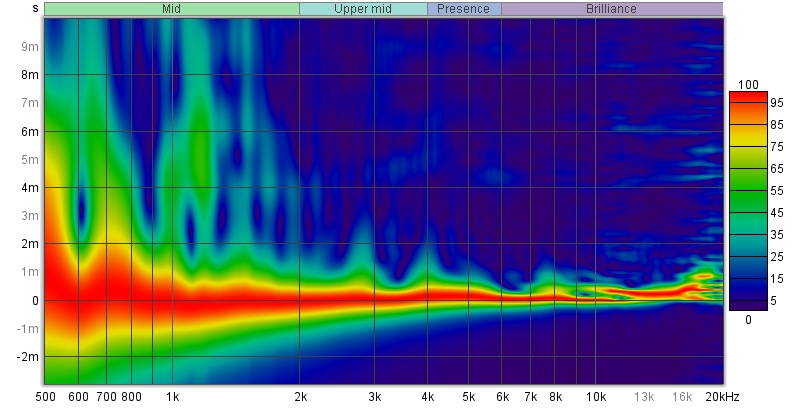

Fig 4 – HiVi F8 Spectrogram
Fig 5 – HiVi F8 Harmonic Distortion

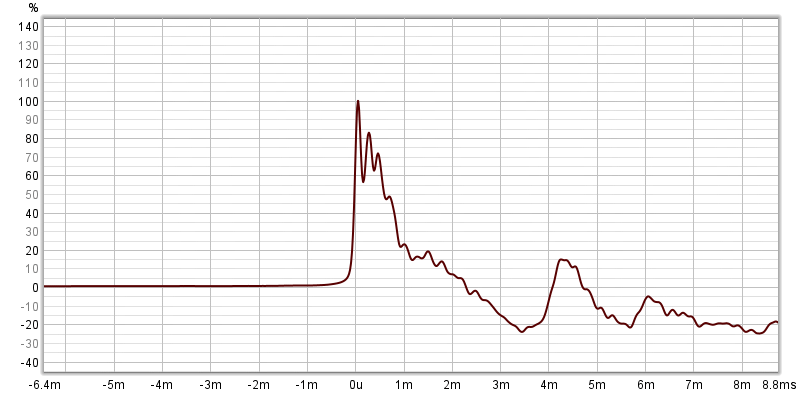

Fig 5 – HiVi F8 Step Response
