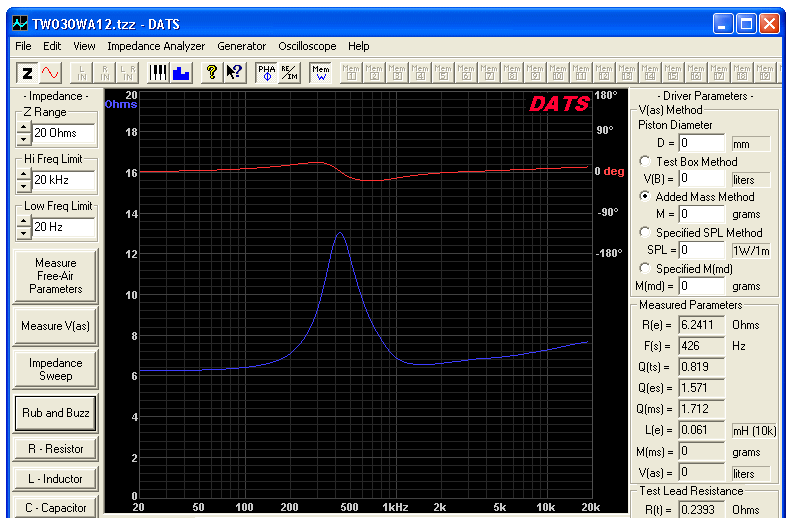

michael chuaSeptember 20, 2024Drivers EvaluationHorn Tweeter, TW030, Wavecor Wavecor TW030WA12 Fig 1 – Wavecot TW030WA12 RAW Frequency Response • Flush Mounted • Baffle Width = 12″ Fig 2 – Wavecor TW030WA12 with 12dB Low Pass (Red Plot) Fig 3 – Wavecor TW030WA12 Waterfall Fig 4 – Wavecor TW030WA12 SpectrogramFig 5 – Wavecor TW030WA12 Harmonic Distortion Fig 6 – Wavecor TW030WA12 T/S
Fig 1 – Wavecot TW030WA12 RAW Frequency Response • Flush Mounted • Baffle Width = 12″
Fig 2 – Wavecor TW030WA12 with 12dB Low Pass (Red Plot)

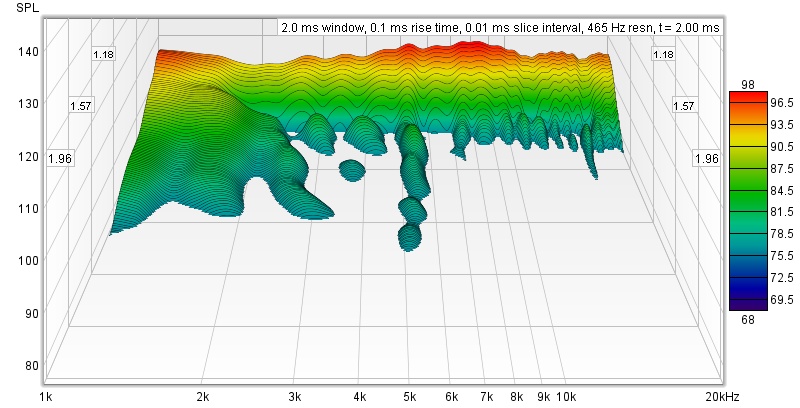

Fig 3 – Wavecor TW030WA12 Waterfall

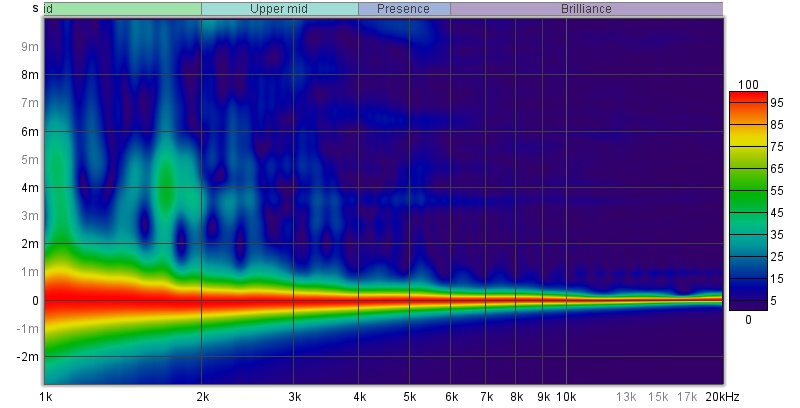

Fig 4 – Wavecor TW030WA12 Spectrogram

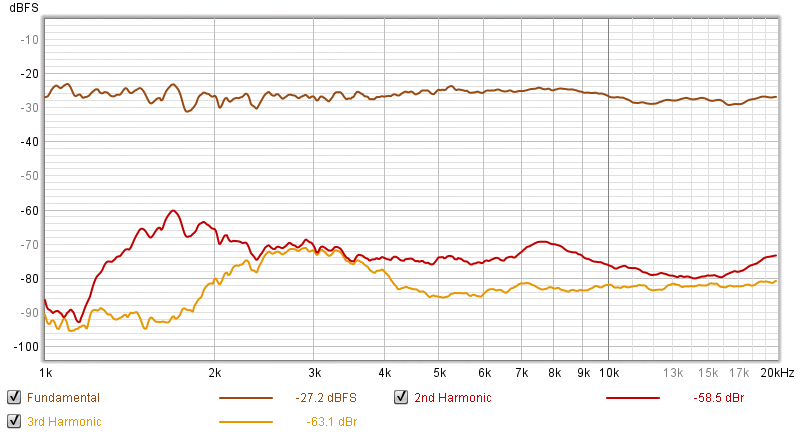

Fig 5 – Wavecor TW030WA12 Harmonic Distortion
