Dayton RS225-4 8″ Reference Woofer T/S

Dayton RS225-4 Frequency Response
28 liters Bass Reflex • Fb=38Hz • Baffle Width=12″

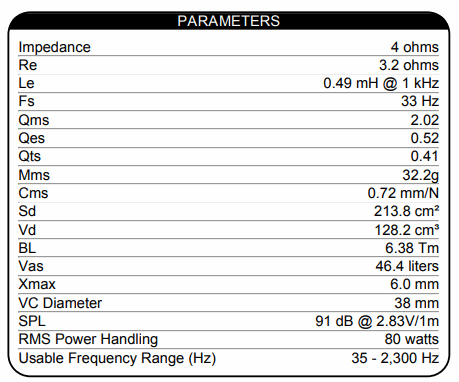

Thiele & Small Parameters

Thiele & Small Parameters (before Break-in)

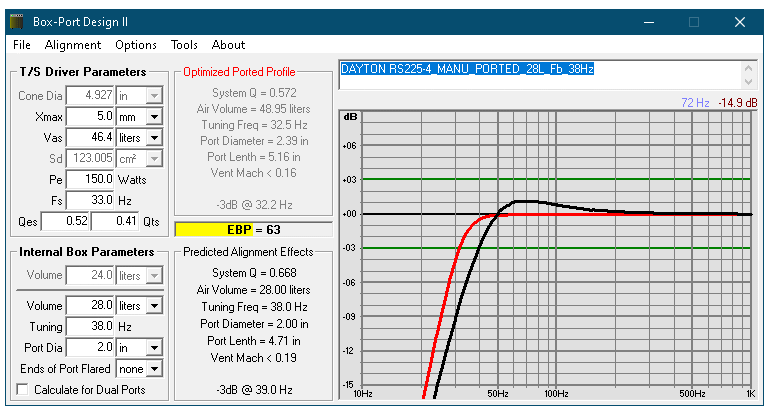

Ported Box=28 liters • Fb=38Hz • Q=0.67(Manufacturer’s T/S)

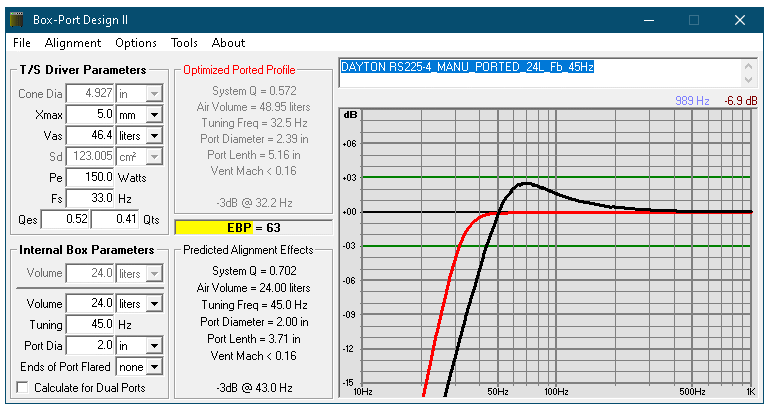

Ported Box=24 liters • Fb=45Hz • Q=0.70 (Manufacturer’s T/S)

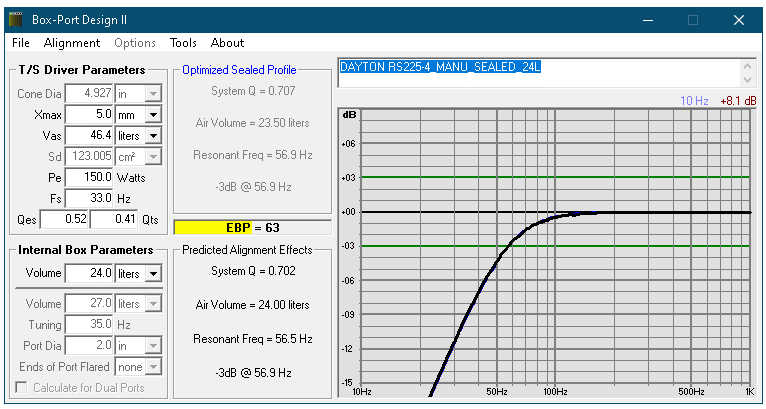

Sealed Box=24 liters • F3=57Hz • Q=0.70 (Manufacturer’s T/S)

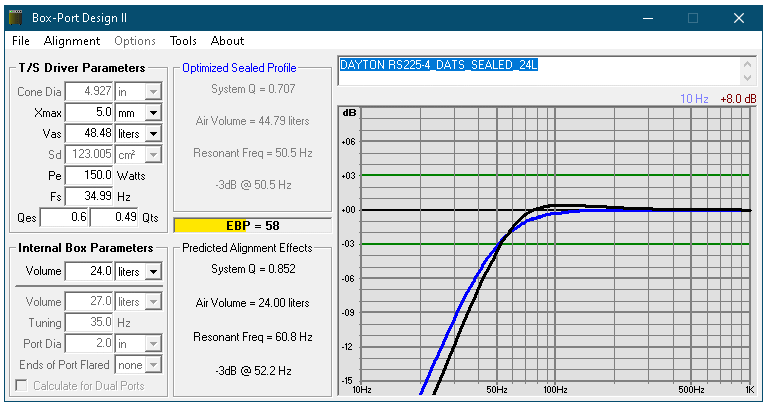

Sealed Box=24 liters • F3=52Hz • Q=0.85 (DATS T/S)
